Construction Site 400 M Building Site Hoist
Building Site Hoist Main Parts
1. The gearing adopts imported bearing, enameled cable, and oil seal.
2. The electric parts adopt products from world renowned manufactures such as Schneider, Siemens, and LG.
3. The racks and pinion adopts special material and heat-treatment technique, which prolong the life of these parts.
4. The steel structure uses quality steel from famous domestic manufactures.
5. The surface of the structure can apply paint-spray, parkerozing baking finish or hot galvanizing processing according to users requirements,
6. The cage can be produced and decorated by aluminum molded board, punched-plate or figured aluminm board.
Building Site Hoist Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
Building Site Hoist Parameters
| Technical Data | Building Site Hoist VFD Rack Pinion Elevator SC200/200BG KP-B09B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. |
Product Tags:
|
|

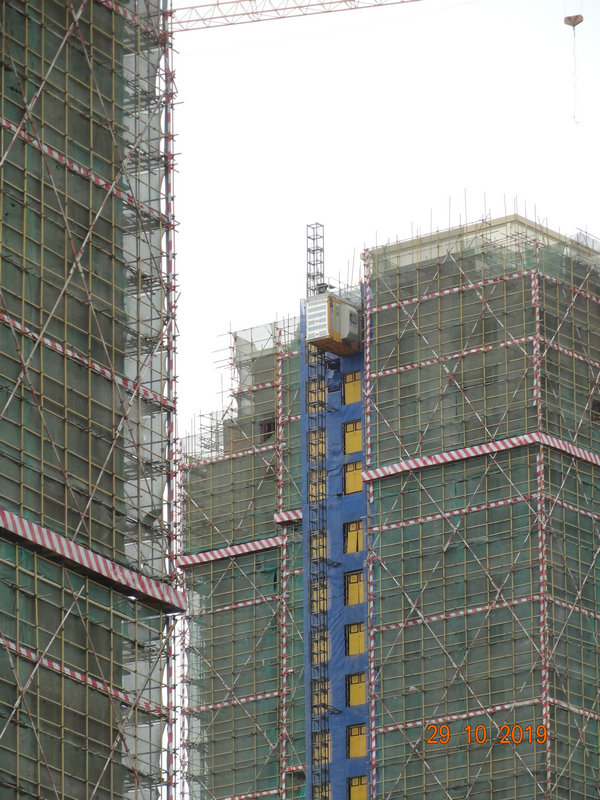

Construction material lift 400 M Building Site Hoist Images
|
