Waterproof High Strength 2000 Kg Rack And Pinion Elevator
Rack And Pinion Elevator Advantages:
SC series building hoist adopted computer aided design. Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable and popular. Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1-2 tons, and the running speed can reach 28~38m/min. Moreover, VVVF speed regulation and PLC enable 0-68 limitless speed, automatic layer selecting and leveling as required. SC series building hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
Rack And Pinion Elevator Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Rack And Pinion Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Rack And Pinion Elevator Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Rack And Pinion Elevator Parameters
| Technical Data | KP-B09, KP-B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
Product Tags:
|
|

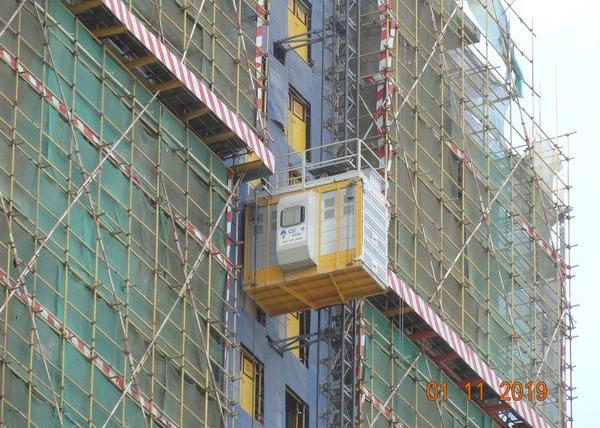

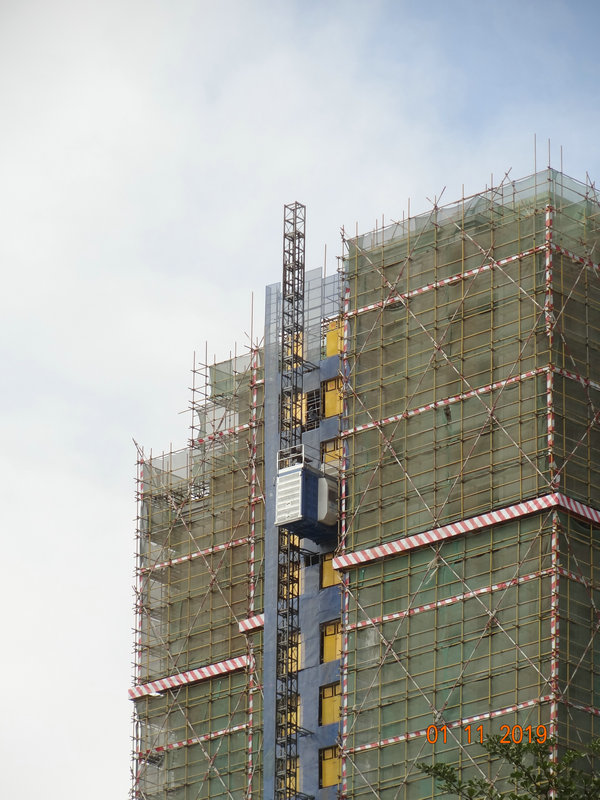

Waterproof Material Hoist 2000 Kg Rack And Pinion Elevator Images
|
